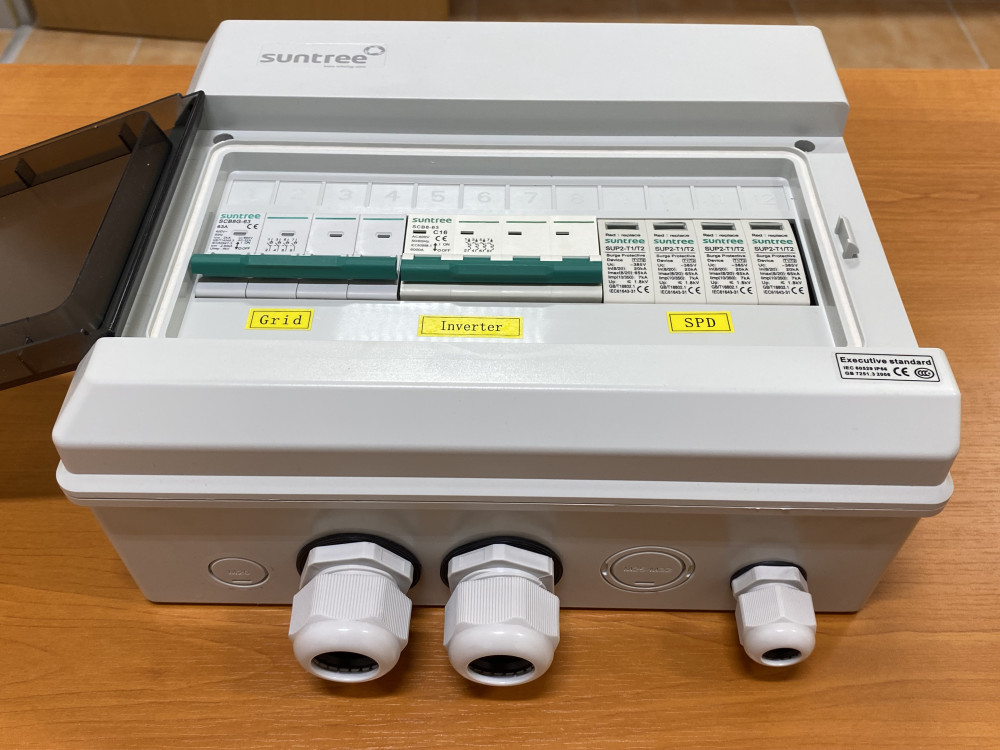

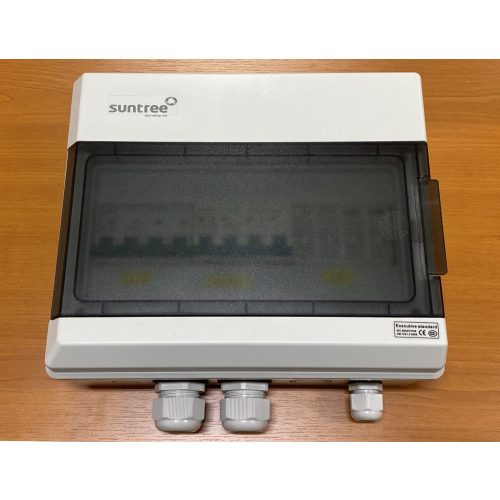

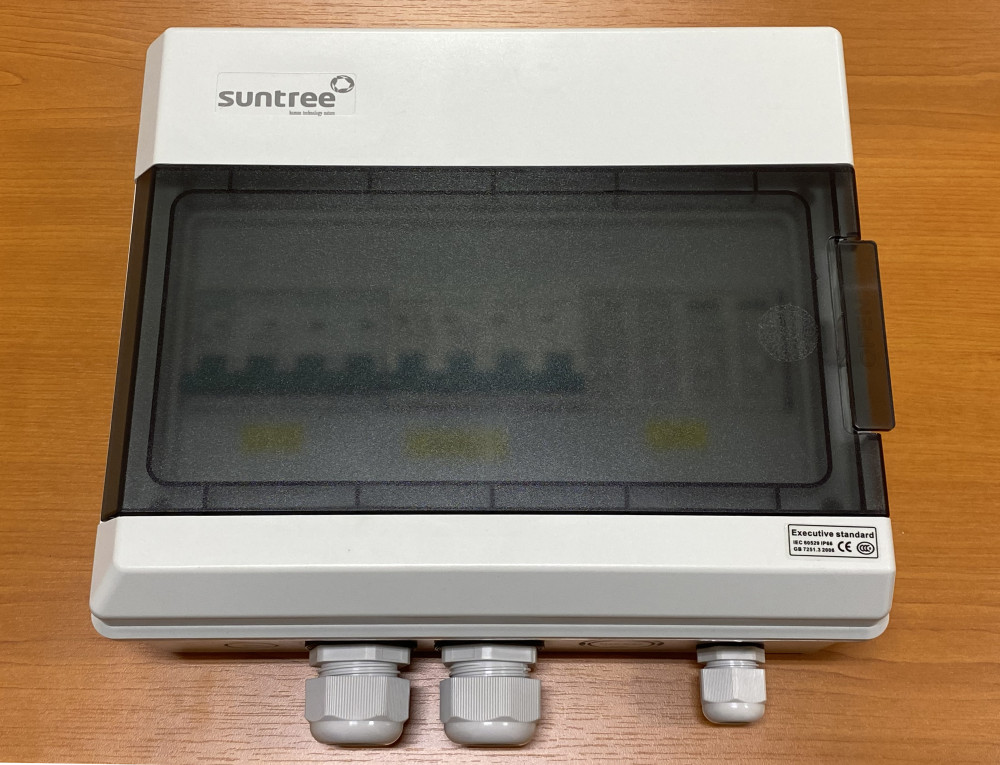

SUNTREE AC 25A előszerelt elosztó T1+T2 25A

High reliability

Strong adaptability

Flexible configuration

Used for AC output of 1-50kw inverter. Current rating of the photovoltaic fuse, circuit breaker is modified.

Bővebben

Részletek

ELECTRICAL TECHNICAL REFERENCE

SHLX-AC
Max input voltage	420V
Input current per string (A)	16A
Rated working voltage (V)	380/220V
Overvoltage protection level (up)	<2.8KV
Nominal discharge current (in)	20KA
Max discharge current (imax)	40KA
Response time	≤25ns
Operational environment	Working temperature: -40℃±85℃, humidity 95%, no condensation, no corrosive gas
Altitude	≤2500m
AC SURGE PROTECTOR
Surge Protection Device	SUP2-40 4P T2 20-40KA
Voltage (V)	420V
Maximum instantaneous discharge current	In=20KA/40KA
Pole	4P
Certification	CE TUV
AC CIRCUIT BREAKER
MCB Device 1	SCB8-C16
MCB Device 2	SCB8G-C16
Voltage (V)	400/230V
Current (A)	16A
Pole	4P
Certification	CE CB TUV SAA
BOX
Box material	Engineering plastics
Box protection grade	IP65
Cable gland protection grade	IP65

Adatok

Cikkszám

SUN-SHLX-AC-25
